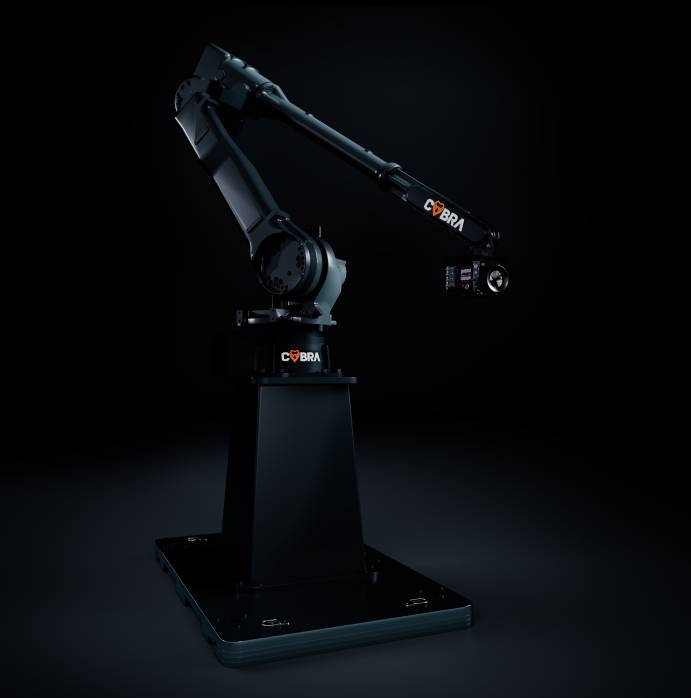

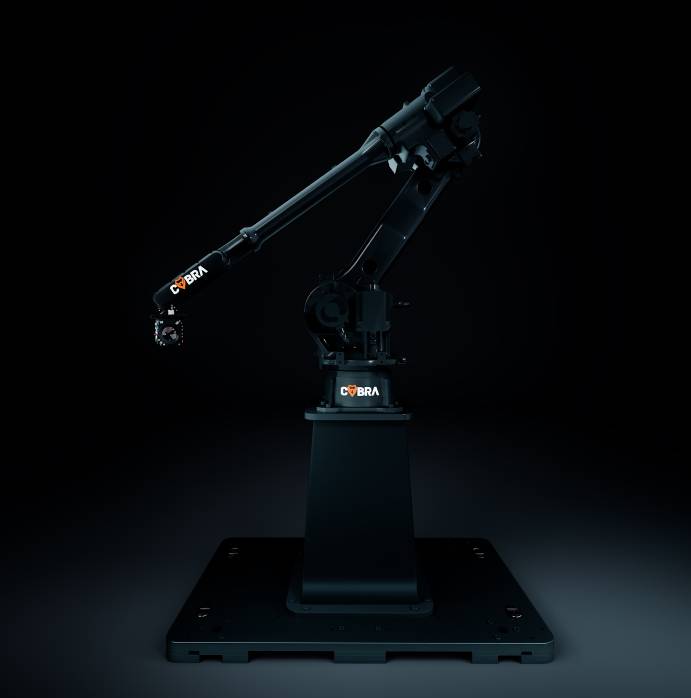

Cobra High Speed Cinebot

The Cobra Hi-Speed Cinebot is the latest additional to Camera Control's collection of motion control tools and has the longest arm reach of our high speed equipment, allowing for greater freedom of movement vertically and side to side. This has proved to be very useful for shooting live action subjects and provides further creative possibilities.

10 FT 6 IN
Reach
35 LB
Payload
45MINS
Set up time
13 FT/SEC
Speed at camera

Portabililty

Just like the highly acclaimed bolt, we have developed a system for rapidly setting up and repositioning Cobra to enable shots to be achieved quickly in studio and location settings.

Software

Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.

Download Specs

Milo Specs

Cobra Specs

Range
Feet
Meters
Maximum Height (looking down)
14 ft
4.2 m
Lowest position
-5 ft
-1.5 m
Max reach (from rotate centre)
10ft 6in
3.2 m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
8 ft
2.4 m
Rig Width
6ft
1.8m
Rig Length
6ft 6in
1.8m
Shooting Speeds
Feet
Meters
Feet Vertical move
10ft per sec
3m /sec
Feet Horizontal move
13ft per sec
4m /sec
Track
-
-
Roll
+/-360 degrees
400 degrees sec
Max Speed at Camera
13ft/sec
4m/sec
Weights
Pounds
Kilograms
Rig
2500 lb
1200 kg
Max Camera Payload
35lb
16kg
Power Requirements
Power
Stage
120/208 5 Wire 3 Phase Camlok
Generator
15kW
