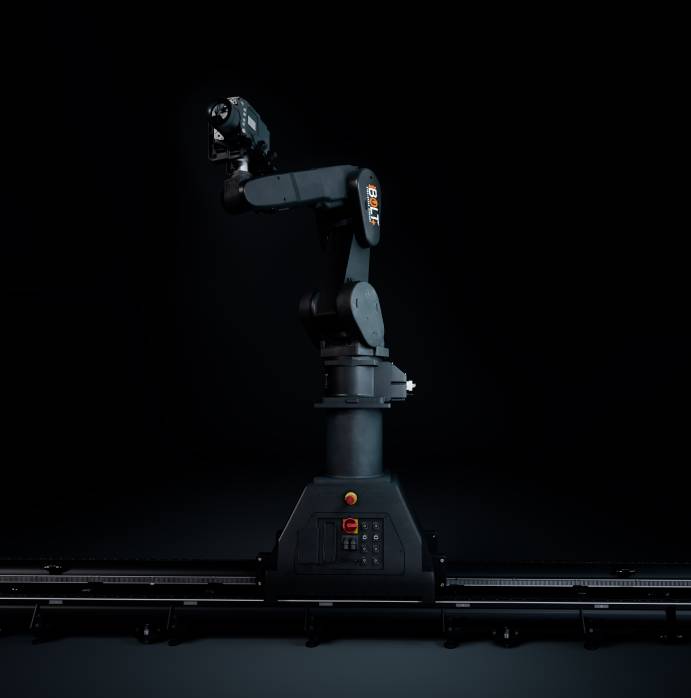

Bolt Jr+ High Speed Cinebot

Bolt Jr+ is a compact cinema robot that can run on either standard 10-foot rails, the new narrow-scale 6-foot rails, or in a pedestal configuration. It only requires single-phase power, and features an adjustable base that allows it to fit through standard doorways, making it very suitable for smaller sets and locations.

45 MINS
Set up time
26 LB
Payload
4 FT 6 IN
Reach
20 FT/SEC
Speed at camera

Software

Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.

Bolt Jr+ Specs

Range
Feet
Meters
Maximum Height (looking down)
8 ft
2.45 m
Lowest position
0 ft
0 m
Max reach (from rotate centre)
4ft 6in
1.4m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
5ft
1.5m
Rig Width
2ft 4in
0.7m
Rig Length
4ft
1.2m
Shooting Speeds
Feet
Meters
Feet Vertical move
6ft per sec
1.8m /sec
Feet Horizontal move
6ft per sec
1.8m /sec
Track
10ft per sec
3m /sec
Roll
+/-720 degrees
600 degrees sec
Max Speed at Camera
20ft/sec
6m/sec
Weights
Pounds
Kilograms
Rig
660 lb
300 kg
Max Camera Payload
26lb
12kg
Power Requirements
Power
Stage
120V. (Or 240v)
Generator
3kW
