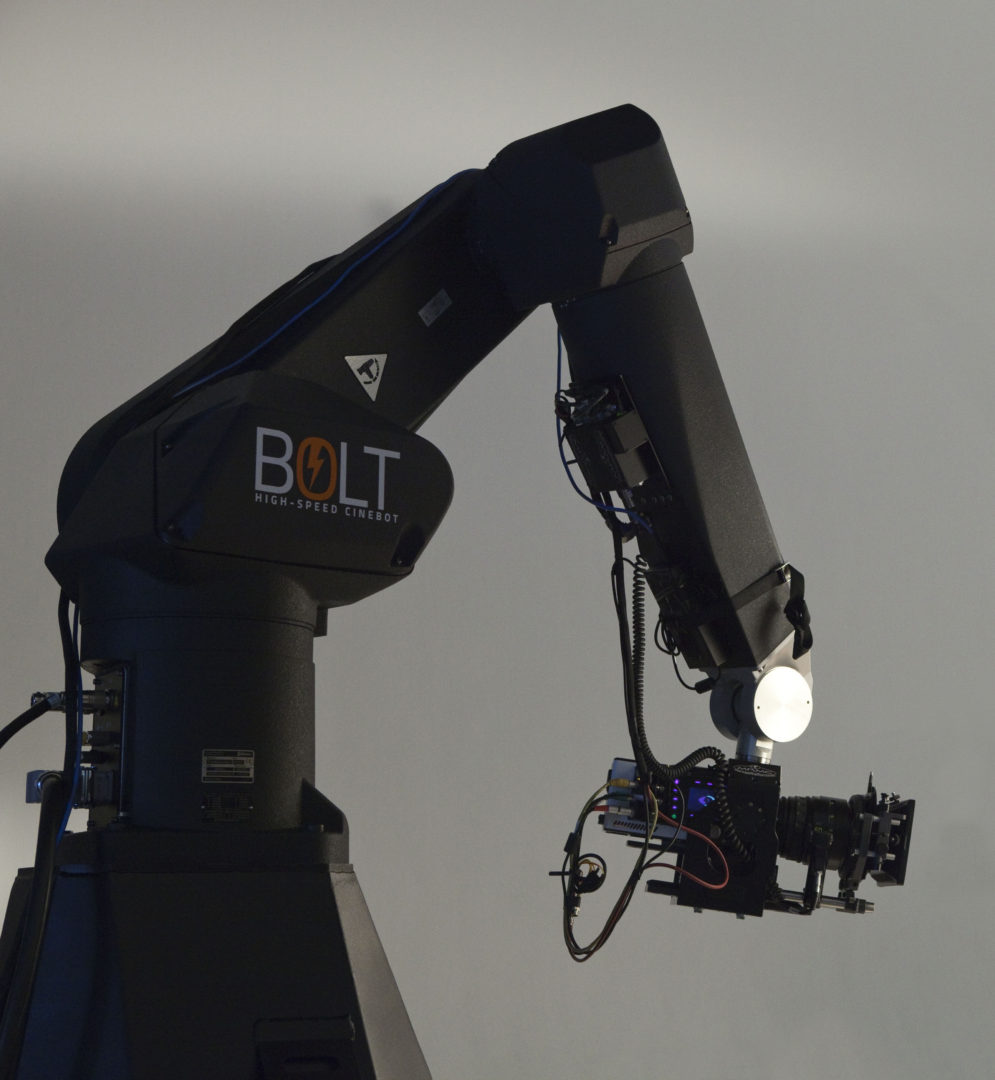

Bolt High Speed Cinebot

Camera Control presents the Bolt Hi-Speed Cinebot for precision camera moves at ultra high speeds. The Bolt has the ability to get up to speed almost instantly. The camera can go from standstill to high-speed motion and back in a fraction of a second. The Bolt can literally follow falling objects and capture images that would be impossible by any other method.  Bolt can also be mounted on the High Speed base for high acceleration tracking moves.

45 MINS
Set up time
35lb
Payload
6 FT
Reach
26FT/SEC
Speed at camera

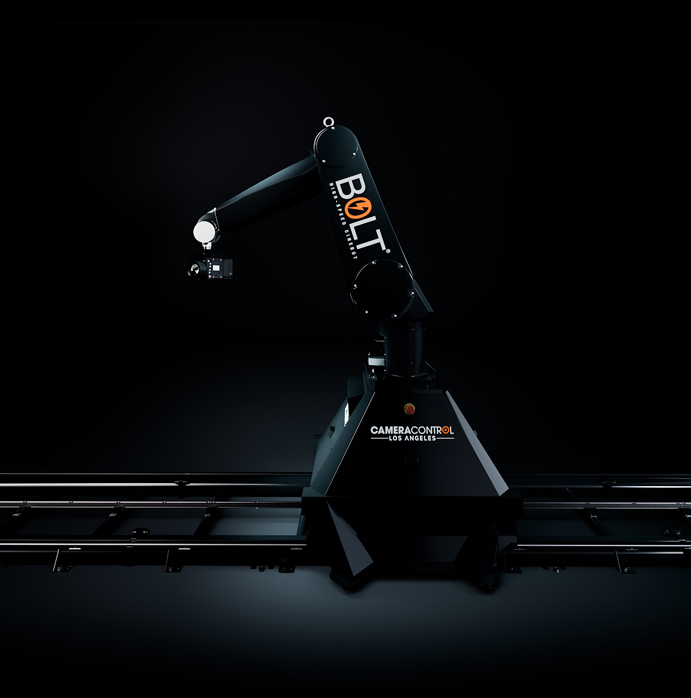

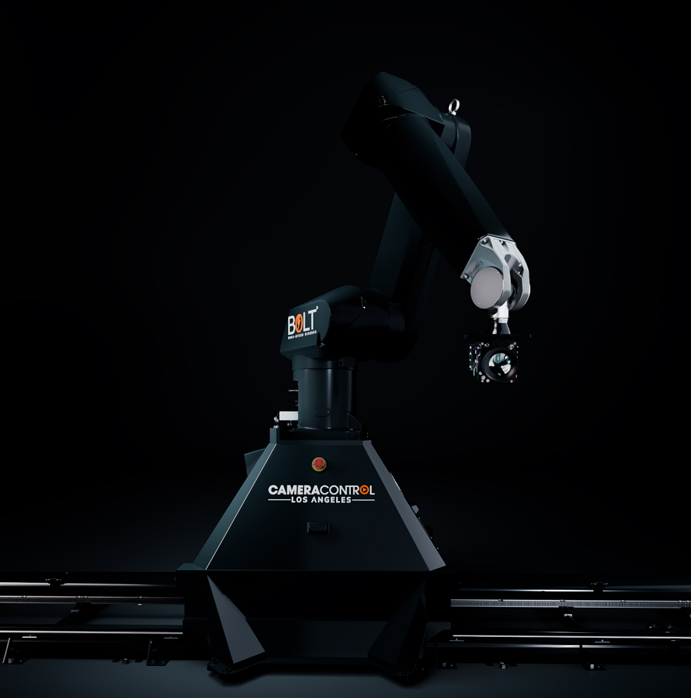

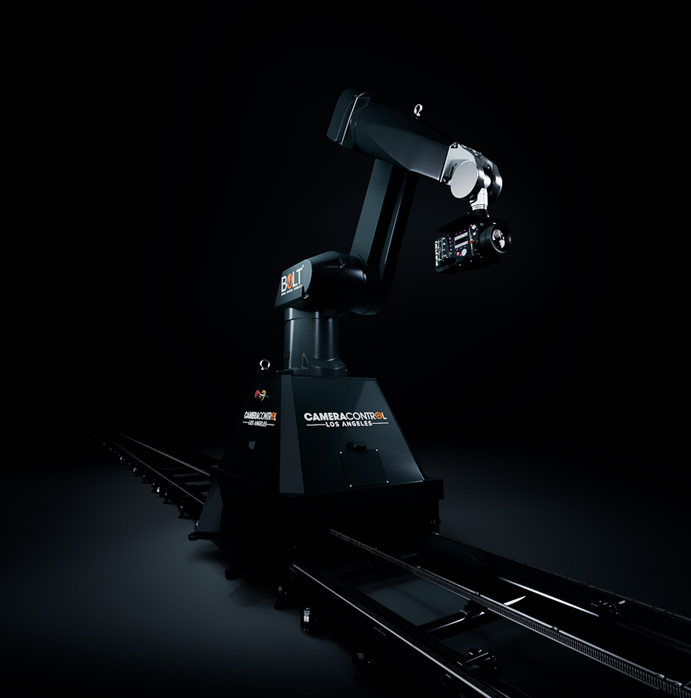

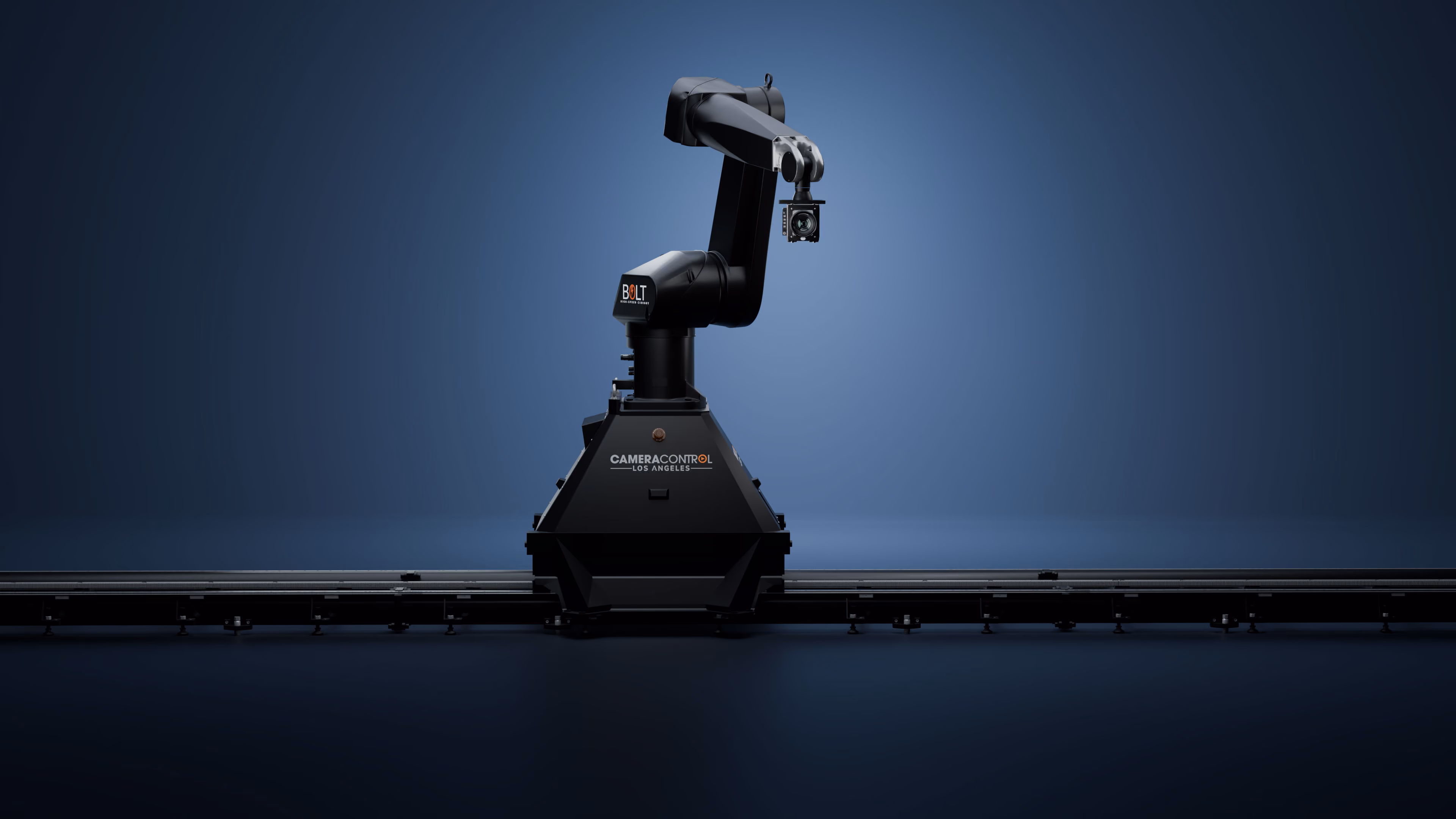

High Speed Track

Another dimension of movement for the already highly versatile Bolt, you can now run the Cinebot on a track. The operator has the ability to run the Bolt along a track and follow any object, person, or landscape, giving much more flexibility in terms of visual creativity. With rapid acceleration, the Bolt on Track can reach its top speed of 4 meters per second. Additionally, through MRMCs Flair software, you have programmable acceleration profiles so you can consistently reach and maintain desired speeds with pinpoint accuracy.

Software

Our rigs are programmed using Flair Motion Control software, the most advanced motion control software available. Moves can be planned in 3D packages, fed into Flair and executed by our rigs. Reversely, moves programmed in Flair can be exported to 3D packages. For following live action or adding a handheld feel we have handweels and pan bars (encoded Fluid head) as well as options for manual focus/zoom record and playback.

Bolt Specs

Range
Feet
Meters
Maximum Height (looking down)
9.2 ft
2.8 m
Lowest position
0 ft
0 m
Max reach (from rotate centre)
6 ft
1.8 m
Minimum reach
-
-
Rig Dimensions
Feet
Meters
Lowest Travel Height
6 ft
1.8 m
Rig Width
4ft
1.3m
Rig Length
5ft
1.5m
Shooting Speeds
Feet
Meters
Feet Vertical move
9ft per sec
2.7m per second
Feet Horizontal move
9ft per sec
2.7m per second
Track
16.5ft per sec
5m per second
Roll
10 Turns
400 degrees sec
Max Speed at Camera
26ft/sec
8m/sec
Weights
Pounds
Kilograms
Rig
1320 lb
600 kg
Max Camera Payload
35lb
16kg
Power Requirements
Power
Stage
3 phase 220V
Generator
15kW
